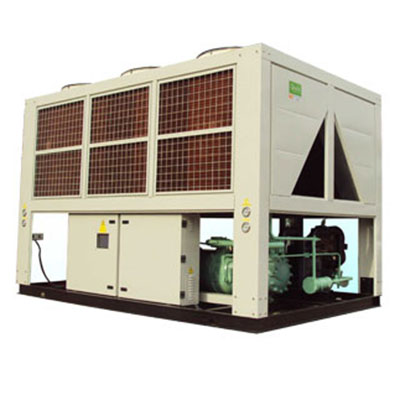

Marine Air Cooled Chiller wanted-Choose Industrial Chiller Manufacturer

Marine air cooled screw chiller unit parameter (T3 working condition） R134a
Model Project				MWALG 130	MWALG 150	MWALG 180	MWALG 240	MWALG 280	MWALG 330	MWALG 380	MWALG 440	MWALG 480D	MWALG 560D	MWALG 660D	MWALG 760D	MWALG 880D
Rated Cooling Capacity	50HZ	KW		133	150	179	240	280	330	380	440	480	560	660	760	880
Rated Cooling Capacity	60HZ	KW		161	178	210	290	330	400	460	530	580	660	800	920	1060
Rated Input Power	50HZ	KW		46	55	59	81	92	108	120	140	162	184	216	240	280
Rated Input Power	60HZ	KW		55	67	71	98	111	130	145	170	196	222	260	290	340
Chilled Water Indoor and Outdoor Temperature				7-12℃
Compressor	Type			6+7semi-hermetic two-screw
Compressor	Quantity			1	1	1	1	1	1	1	2	2	2	2	2	2
Refrigerant	Name			R134a
	Max Ambient Temperature			60℃
	Throttling devices			External equalizer thermostatic expansion valve/Electronic expansion valve
	Refrigerant Charge	Kg		38	44	56	62	76	84	110	141	162	168	220	282	324
air side heat exchanger				Corrugated aluminum fins hydrophilic membrane kit thread brass
Condensing Fan	Model			Ultra low-noise axial fan
	Power	50HZ	KW	1.1×4	1.5×4	1.5×4	1.5×6	1.5×6	1.5×6	1.5×8	1.5×8	1.5×10	1.5×12	1.5×12	1.5×12	1.5×16
	Power	60HZ	KW	1.5×4	1.5×4	1.8×4	1.8×6	1.8×6	1.8×6	1.8×8	1.8×8	1.8×10	1.8×12	1.8×12	1.8×16	1.8×16

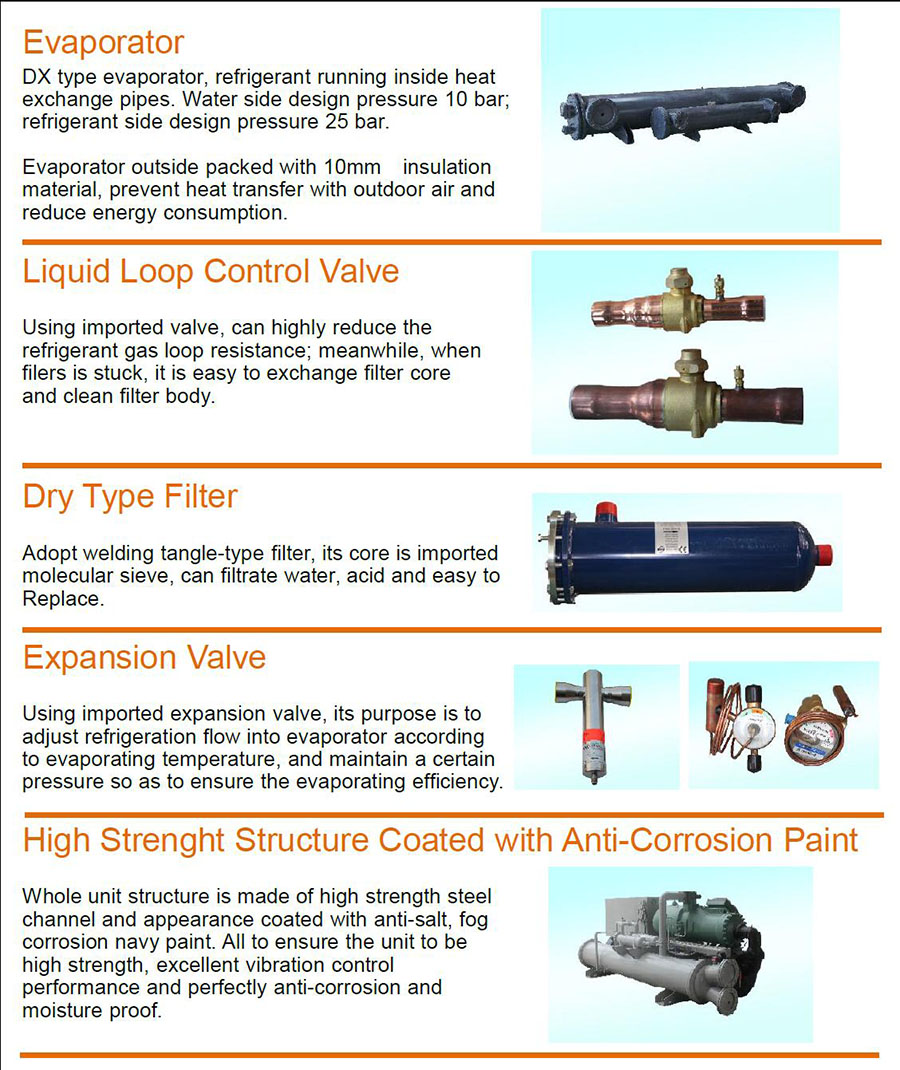

Evaporator	Model			Dry Shell and Tube
	Chilled water Flow	50HZ	m3/h	23	26	30	34	44	49	56	74	92	97	112	148	185
	Chilled water Flow	60HZ	m3/h	26	30	35	39	50	56	64	86	108	112	130	173	215
	Diameter	50HZ	mm	DN80	DN80	DN80	DN100	DN100	DN100	DN100	DN125	DN125	DN125	DN150	DN150	DN150
	Diameter	60HZ	mm	DN80	DN80	DN80	DN100	DN100	DN100	DN125	DN125	DN125	DN150	DN150	DN150	DN200
	Water resistance		KPa	50-80
Noise			dB (A)	63	64	65	65	66	66	67	68	68	69	70	71	72
Dimension	Length	50HZ	m	2200	2300	2400	3000	3500	3800	4500	5000	3000*2	3500*2	3800*2	4500*2	5000*2
	Length	60HZ	m	2300	2400	2400	3500	3800	4500	500	6000	3500*2	3800*2	4500*2	5000*2	6000*2
	Width		m	2250	2250	2300	2300	2300	2300	2300	2300	2300	2300	2300	2300	2300
	Height		m	2250	2250	2250	2450	2550	2550	2550	2550	2550	2550	2550	2620	2620
1.Chilled water inlet temperature:12℃,Chilled water outlet temperature: 7℃,air side dry bulb temperature: 46℃,wet bulb temperature: 24℃. 2.*represent option

Application:
It is widely used in all kinds of passenger ships, cargo ships, warships and offshore oil platfroms
