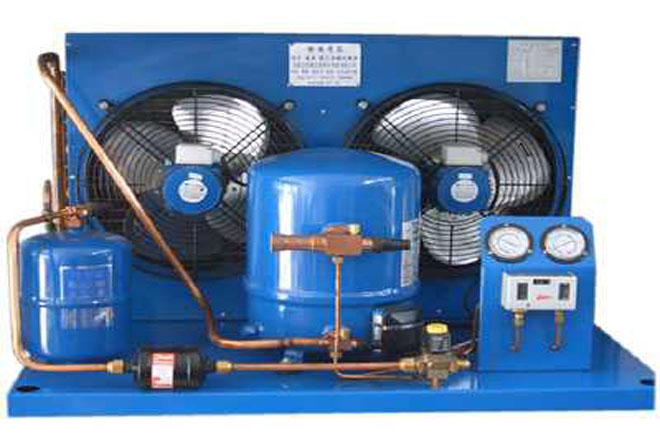

Maneurop Cold Room Condensing Unit
Contact Us
- Tel: 0086-13916147965
- Email: sales@venttk.com
- WhatsApp: 0086 13916147965
- Mob: 0086 13916147965
Feature:
1.Danfoss Maneuop hermetically sealed refrigeration compressor, large internal free volume, able to effectively prevent liquid strike;
2.Aluminum condenser with copper tube, efficient heat exchanger, and long service life;
3.The domestically produced high-quality refrigeration parts, units equipped with receiver, filter, solenoid valve, pressure controller, high and low voltage meter, and junction box.
1.Danfoss Maneuop hermetically sealed refrigeration compressor, large internal free volume, able to effectively prevent liquid strike;
2.Aluminum condenser with copper tube, efficient heat exchanger, and long service life;
3.The domestically produced high-quality refrigeration parts, units equipped with receiver, filter, solenoid valve, pressure controller, high and low voltage meter, and junction box.
| Unit Model | Compressor Model | Power | Refrigerating capacity |
Tube specification |
Overall dimensions (mm) |
Mounting dimensions (mm) | ||||
| KW（KW） | W | Muffler | Liquid tube | A | B | C | a | b | ||
| MGH(Z)-28 | MT(Z)28 | 2.2 | 4700 | Φ12 | Φ10 | 680 | 610 | 570 | 570 | 400 |
| MGH(Z)-36 | MT(Z)36 | 2.95 | 6010 | Φ16 | Φ10 | 960 | 680 | 470 | 910 | 370 |
| MGH(Z)-40 | MT(Z)40 | 3.34 | 6610 | Φ22 | Φ12 | 960 | 680 | 520 | 910 | 370 |
| MGH(Z)-50 | MT(Z)50 | 3.8 | 7400 | Φ22 | Φ12 | 1060 | 680 | 730 | 1025 | 400 |
| MGH(Z)-64 | MT(Z)64 | 4.86 | 9780 | Φ22 | Φ12 | 1300 | 750 | 770 | 1250 | 420 |
| MGH(Z)-80 | MT(Z)80 | 6.0 | 12380 | Φ28 | Φ16 | 1300 | 800 | 970 | 1250 | 500 |
| MGH(Z)-100 | MT(Z)100 | 7.0 | 14340 | Φ28 | Φ16 | 1300 | 850 | 1170 | 1250 | 500 |
| MGH(Z)-125 | MT(Z)125 | 9.32 | 19190 | Φ28 | Φ16 | 1300 | 850 | 1420 | 1250 | 500 |
| MGH(Z)-160 | MT(Z)160 | 11.5 | 24090 | Φ28 | Φ16 | 1300 | 850 | 520 | 1250 | 500 |
| MGH(Z)-28 | MT(Z)28 | 1.77 | 2730 | Φ12 | Φ10 | 680 | 610 | 520 | 570 | 400 |
| MGM(Z)-36 | MT(Z)36 | 2.4 | 3560 | Φ16 | Φ10 | 880 | 680 | 470 | 840 | 490 |
| MGM(Z)-50 | MT(Z)50 | 2.98 | 4280 | Φ22 | Φ12 | 960 | 680 | 520 | 910 | 370 |
| MGM(Z)-64 | MT(Z)64 | 3.95 | 5690 | Φ22 | Φ12 | 1060 | 680 | 670 | 1025 | 400 |
| MGM(Z)-80 | MT(Z)80 | 5.0 | 7330 | Φ28 | Φ16 | 1300 | 750 | 670 | 1260 | 420 |
| MGM(Z)-100 | MT(Z)100 | 5.73 | 8210 | Φ28 | Φ16 | 1300 | 800 | 770 | 1250 | 500 |
| MGM(Z)-125 | MT(Z)125 | 7.6 | 11450 | Φ28 | Φ16 | 1300 | 850 | 970 | 1250 | 500 |
| MGM(Z)-160 | MT(Z)160 | 8.95 | 14460 | Φ28 | Φ16 | 1300 | 850 | 1420 | 1250 | 500 |
|
1. Nominal conditions of refrigerating capacity and power: MGH: -5℃/50℃; MGM: -15℃/50℃; 2. Power source: 380V/50HZ; 3. Refrigerant: R404A for HGZ and MGZ units. |
||||||||||
Application
1.Used for heat transfer in cold storage and all kinds of low temperature systems
2.Used for the process of hypothermia food producing
3.Used for energy recovery and low temperature system devices
4.Used for industry and commerce air conditioning system
1.Used for heat transfer in cold storage and all kinds of low temperature systems
2.Used for the process of hypothermia food producing
3.Used for energy recovery and low temperature system devices
4.Used for industry and commerce air conditioning system
